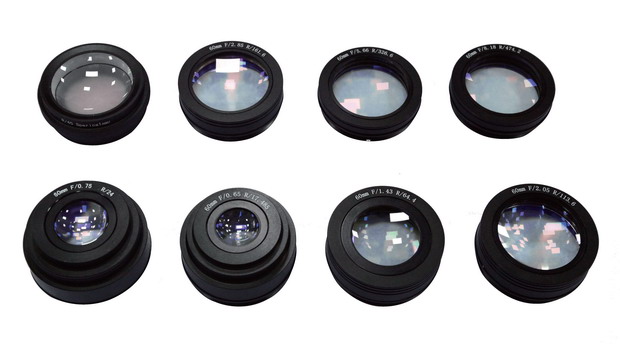

| 選配件： 各種規格球面標準鏡 | 無配置相移干涉條紋解析系統 | |

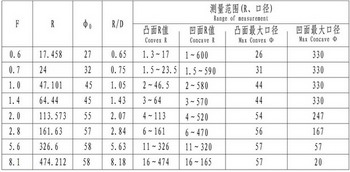

| (適用XQ6J-GⅠ型及各準直光直徑60mm的球面干涉儀) | The Transmission Spheres without PZT System (單位：mm) | |
Options：Transmission Spheres |  | |
| （Apply to XQ6J - GⅠand all kinds of Sphere Interferometer of dia.60 mm） | ||
| 用途： | ||

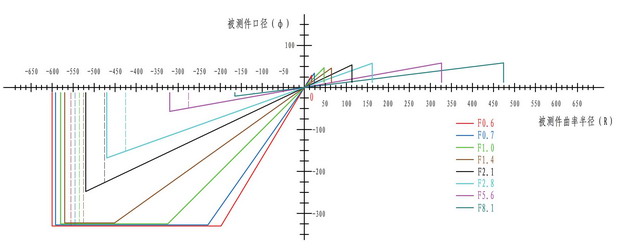

| 球面零件加工及檢測時，根據被測量R值及口徑，首先是選 擇最能滿足測量要求的球面標準鏡。 可供選擇規格：(特殊規格可根據需要定制) F0.6， F0.7，F(xiàn)1.0，F(xiàn)1.4， F2.1， F2.8， F5.6， F8.1 各參考標準球面的面形偏差(PV)值小于0.06μm(λ/10) | ||
Application: | 配置相移干涉條紋解析系統 | |

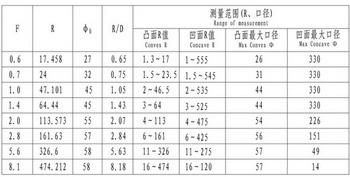

| According to the measured values of R and diameter as Spherical parts measuring, First is to choose the Transmission Sphere which can satisfy the requirement of measurement. The Specifications: (customizable) F0.6， F0.7，F(xiàn)1.0，F(xiàn)1.4， F2.1， F2.8， F5.6， F8.1 The PV will less than 0.06μm(λ/10,@632.8nm) | The Transmission Spheres with PZT System (單位：mm) | |
 | ||
| ||
| ||
 |
 |
