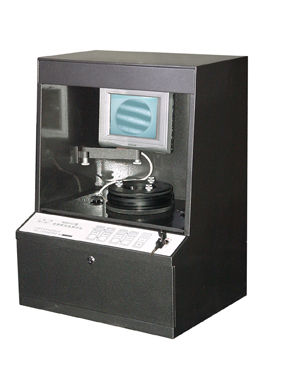

The company to design, manufacture of the XQ60-G type portable laser plane interferometer recently completed assembly and debugging prototype. On the market to maximize the instrument to reduce the working intensity of operators; test is more suitable for mass production; with the computer can directly be detected mirror through the computer storage and transmission of the original data, fixed quality objective evaluation in order to achieve the data archive and remote monitoring, approval, is made of laser plane interferometer development the new instrument industry.
Technical parameters:
The first standard plane (A plane), diameter D1= diameter 60mm, the surface form deviation plane is less than 0.03 μ m (λ /2
Second standard plane (B plane), diameter D1= diameter 60mm, the surface form deviation plane is less than 0.03 μ m (λ /2
The collimation system -- -- -- -- -- -- -- -- work diameter 60mm, length f=200mm
Light source specifications -- -- -- -- -- -- -- -- 635nm/30Mw
