Product Introduction

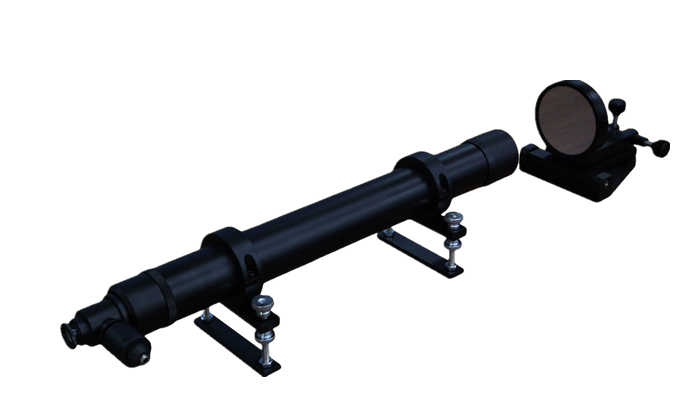

F550 collimator can make the focal length of infinite beam through the device, this beam is called parallel light. Collimator is an important part of adjustment of optical instruments, and is also an important part of optical measuring instruments, with different reticle, along with micrometer eye lens, or microscope system, it can be used to measure the focal length of the lens group, Identify rate, and other image quality .The attached adjustment type plane mirror is fixed on the workpiece which moving straight line is inspected,  observingthrough the Gaussian eyepiece on the light pipe (which is attached to the light pipe),it can perform the linearity test of the moving workpiece.

Technical Parameters
